DMK BWT20 Qilin Handheld Wobble Welding Head Handheld Laser Welding Gun Welding Accessory

$1999.00
Title:Default Title
Default Title
$1999.00
Buy It Now

Features:

  • Lightweight and flexible, the handle is ergonomically designed
  • The technology package has storage and recall functions
  • Good sealing performance can significantly increase product service life
  • Dual protective lenses, the focusing lens adopts a drawer-type design, and the protective lenses are easy to replace
  • High-quality optical lenses, capable of carrying 2000W of power
  • Scientific cooling system design can effectively control product operating temperature

Specifications:
Core Component Composition:

 Welding Gun Model
Control System
Display Wire Feeder
BWT20 V11+ 7in DST20

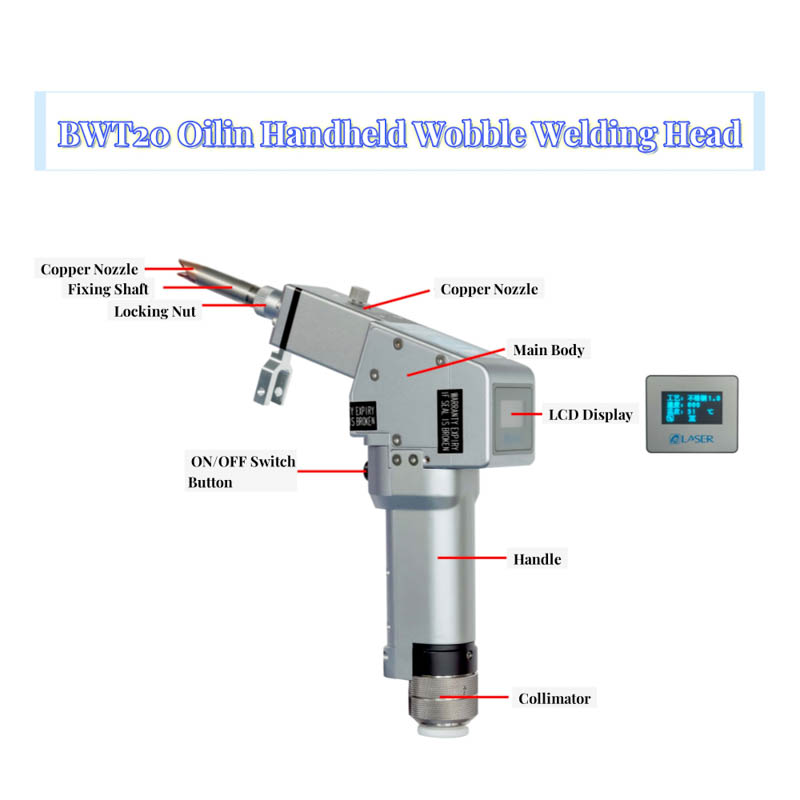

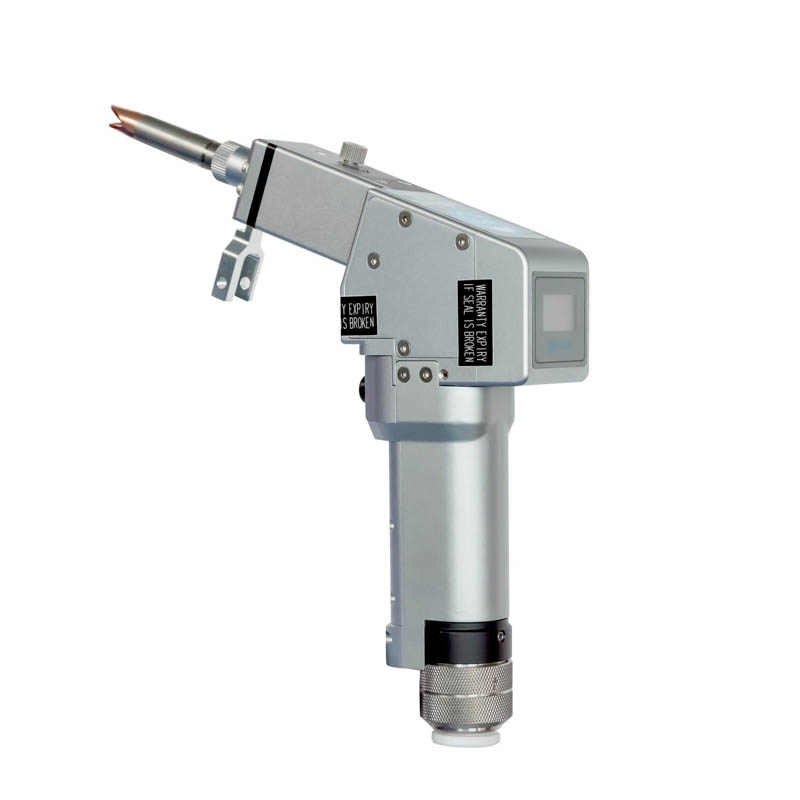

BWT20 Welding Head Specifications:

 Interface QBH/RD
Power 2000W
Collimation Focal Length
50mm
Focus Focal Length
150mm
Optical Aperture
9mm
Wave Mode
Point, Straight Line, Round, Oval, Triangle, Character, Semicircle
Wave Range
0-5mm
Wave Frequency
0-30HZ Adjustable
Weight 0.85kg

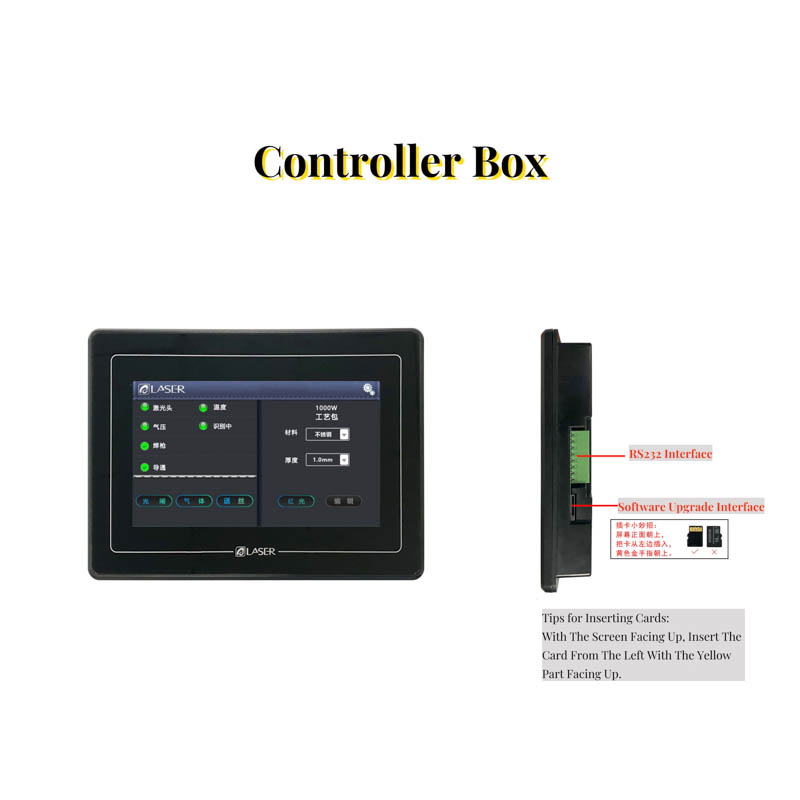

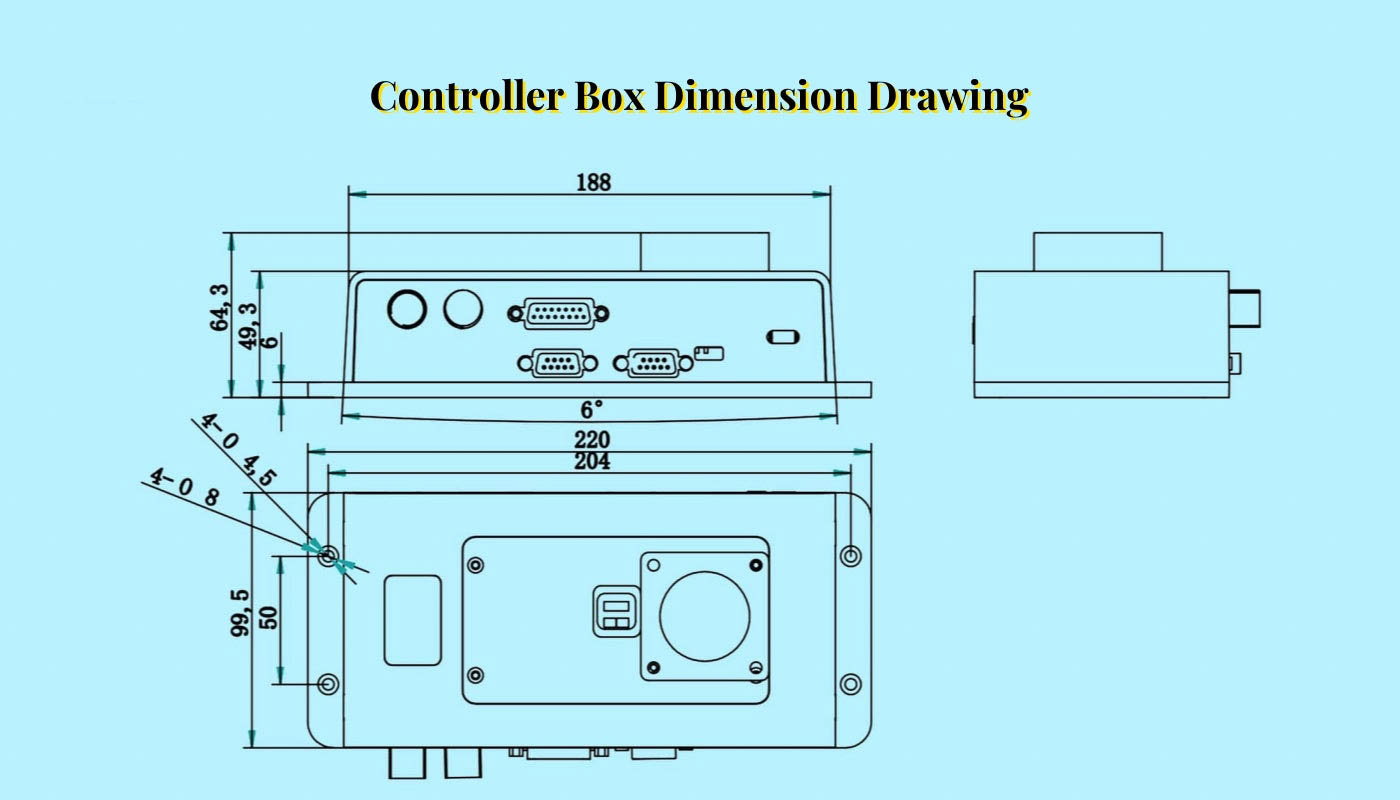

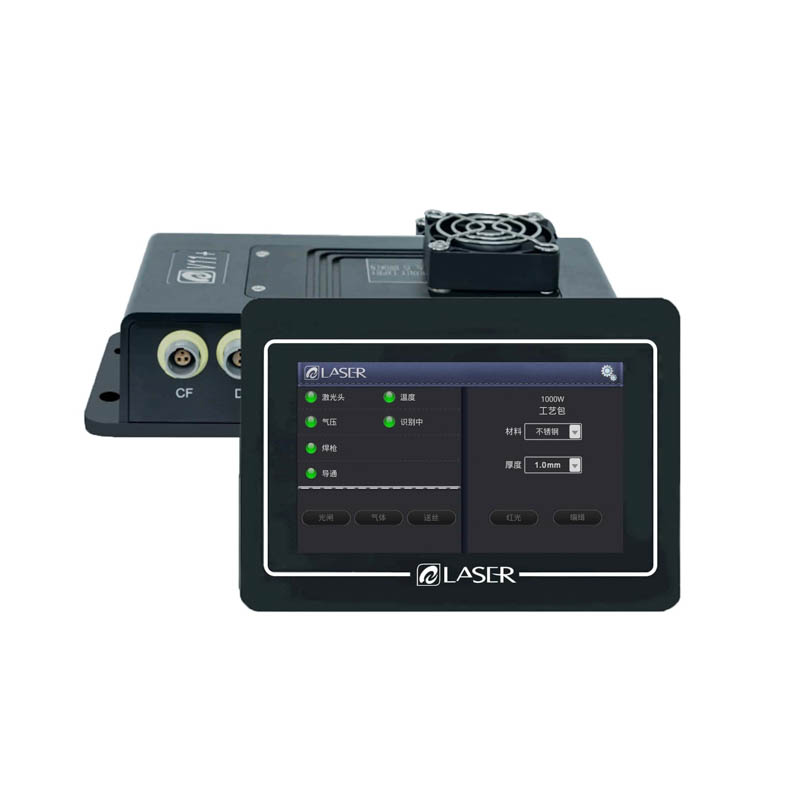

Controller Box Specifications:

 Interface EDG 3.5mm Plug-in PCB Terminal Block
24V Power DC 24V 8A
15V Power ±15V 2A
Welding Gun Interface DB15
Display Interface DB9 Female Base (With Hole)
Driver Power 120W*2
Weight 0.5kg
Function Interface Wire Feeder, Laser Source, Gas, Alarm

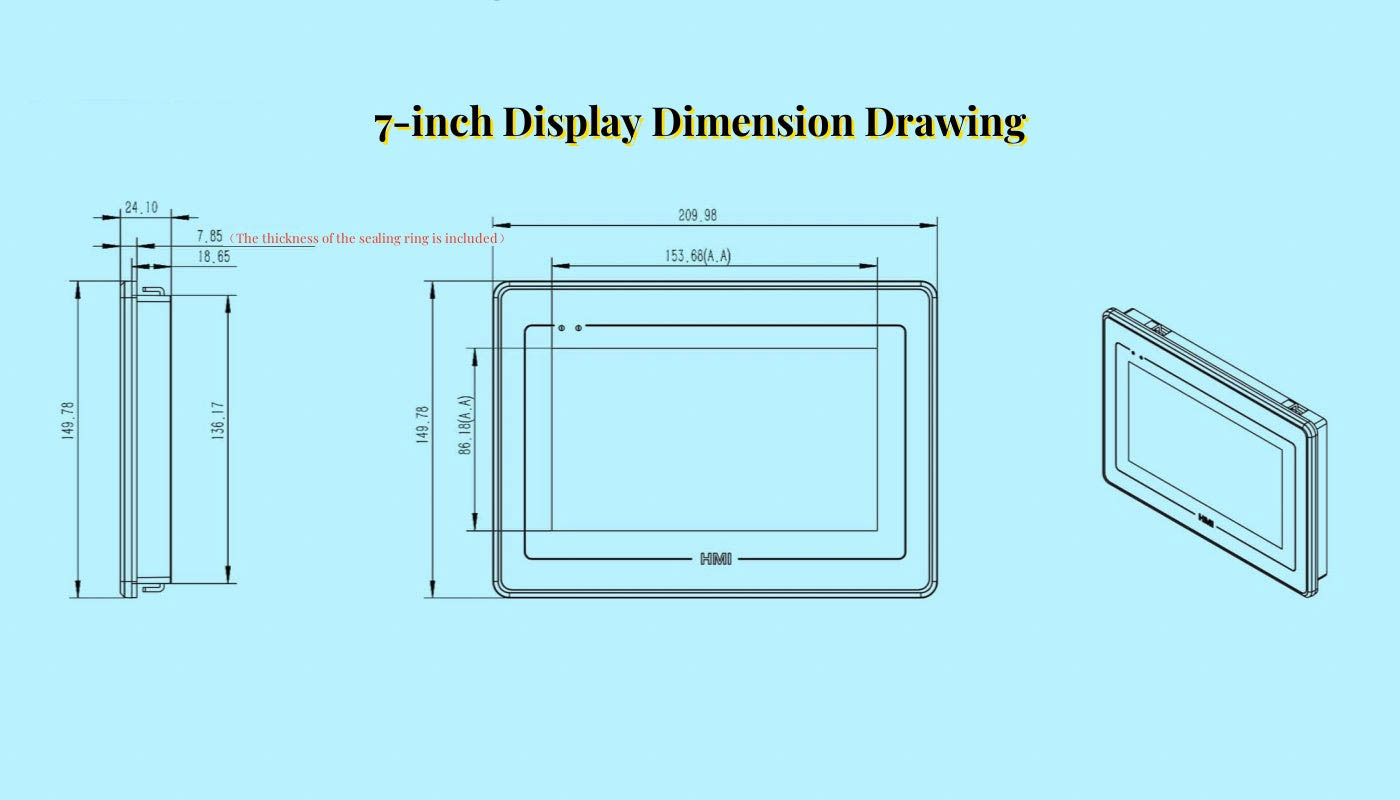

7in Display Specifications:

Size 7.0in
Resolution
1024*600
Power Consumption
Brightest Backlight, No Speaker: 2.3W
Picture Local Download
SD Card, U Disk
Product Size
210.0mm*149.8mm*26.3mm (MAX)
 Window Size 197.0mm*136.4mm

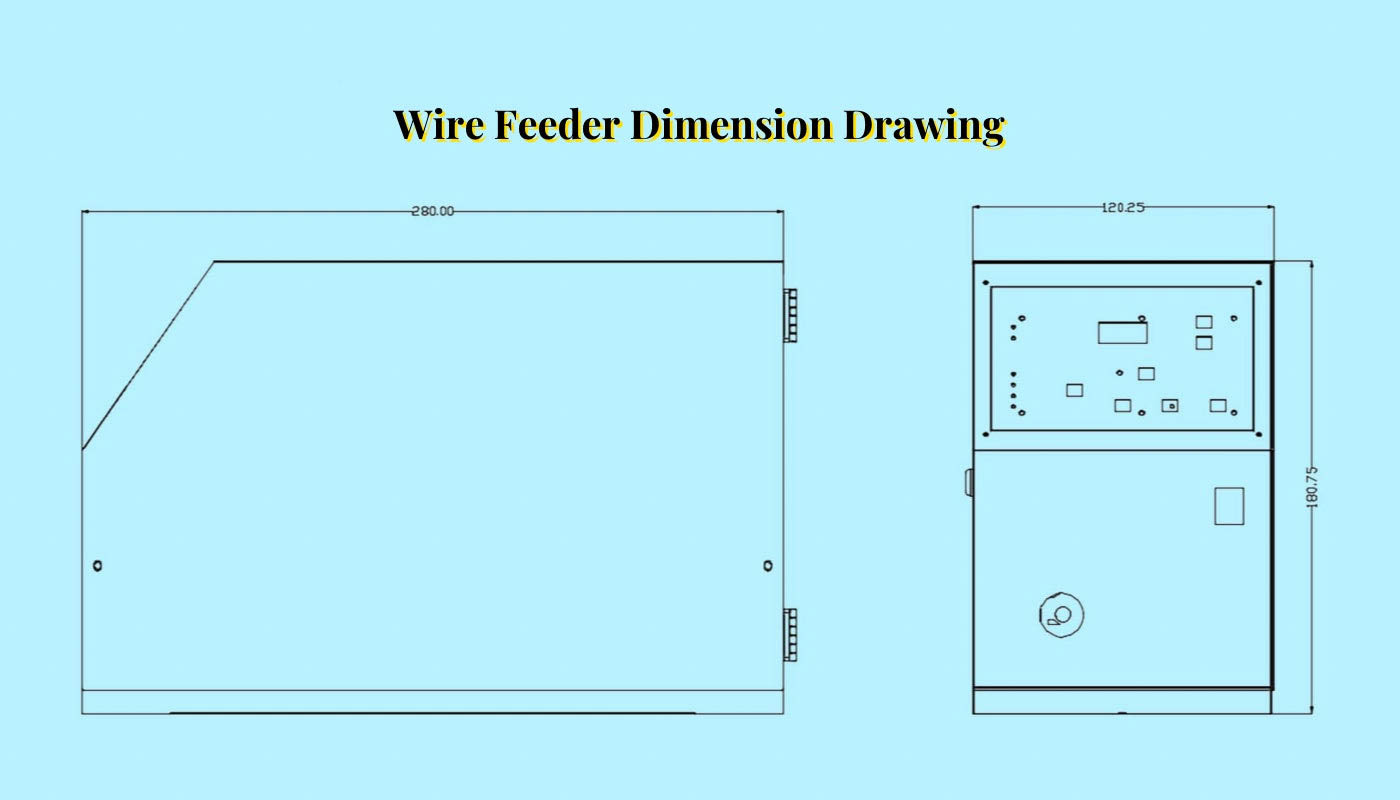

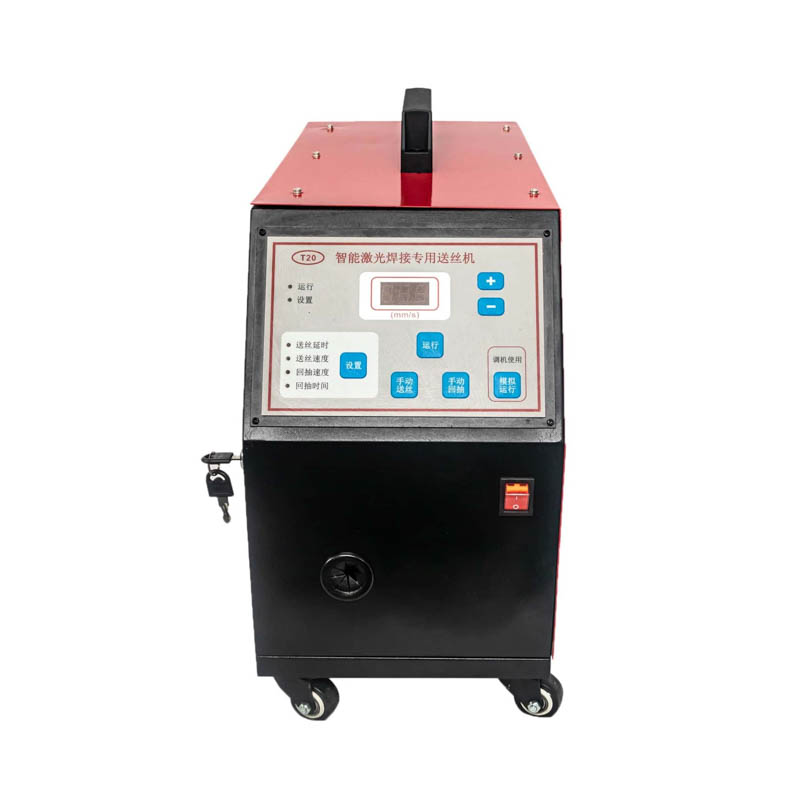

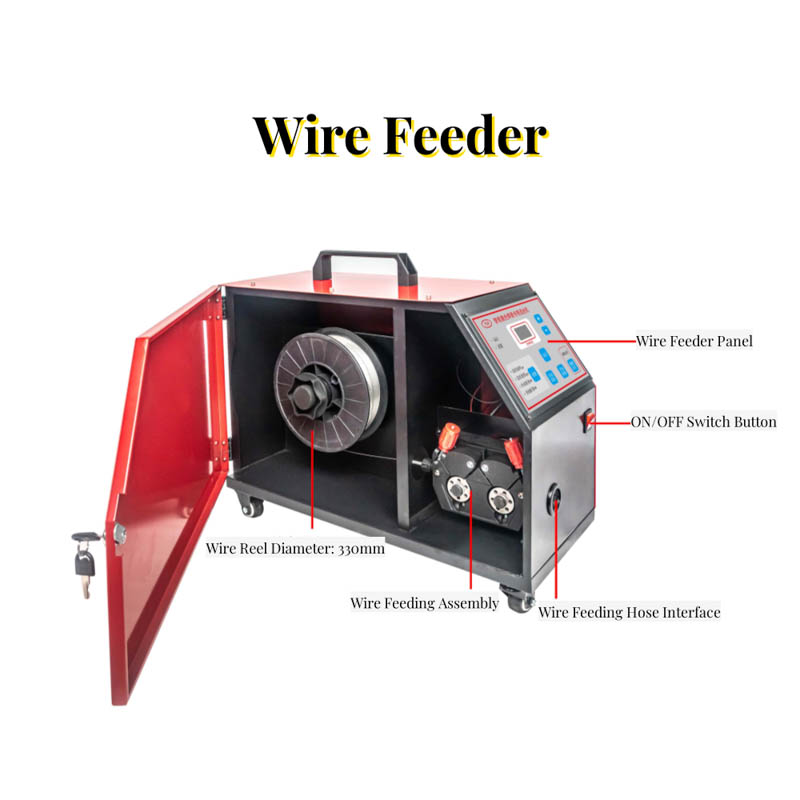

Wire Feeder Specifications:

Interface  6-Pin Aviation Plug
Power Supply Requirements
200W (24V ON/OFF Power Switch)
Maximum Diameter of Wire Reel
320mm
Maximum Load-Bearing Capacity of Wire Reel
16kg
Welding Wire Diameter
0.8-1.6mm
Wire Feeding Speed
40mm/s
Weight 15kg



Package Includes:
1* Handheld Laser Welding Gun
1* Wire Feeder
1* Control System
