1500W/2000W Continuous Portable Air-cooled Handheld Laser Cleaning Machine

Product Features

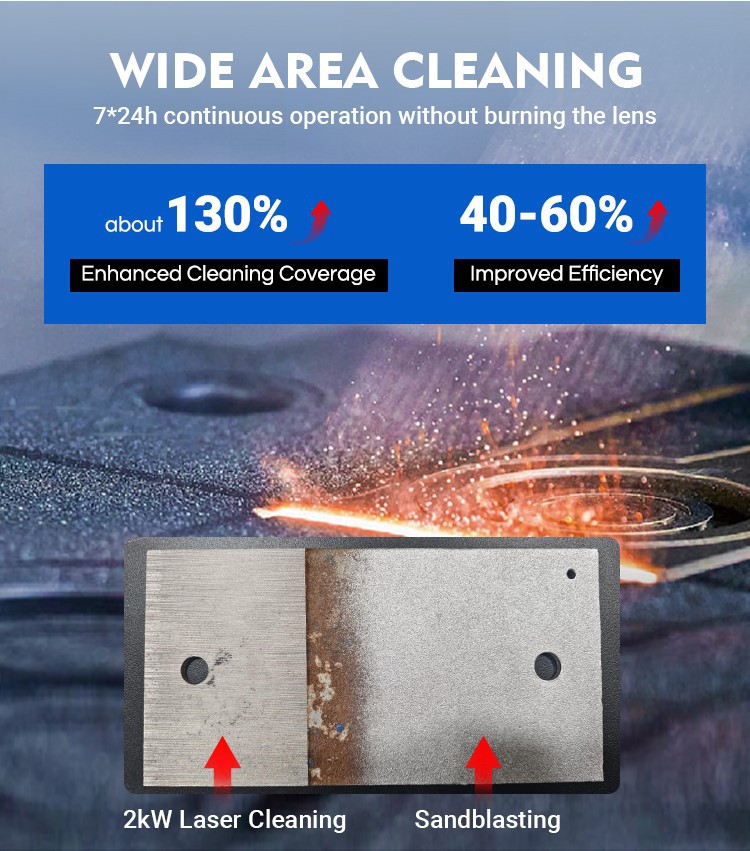

1. Boasting 1500W/2000W high-power selections and a 10%–100% power adjustment range, this device is paired with a 0kHz–5kHz adjustable pulse frequency and 1–30m/s scanning speed. Its cleaning efficiency outperforms traditional methods by a significant margin, making it ideal for large-area and heavy-contamination applications.

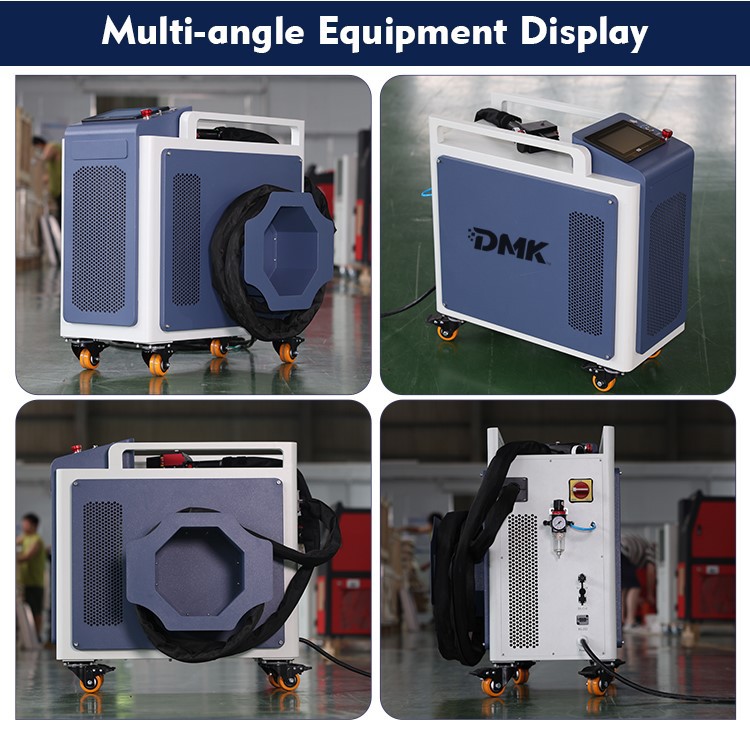

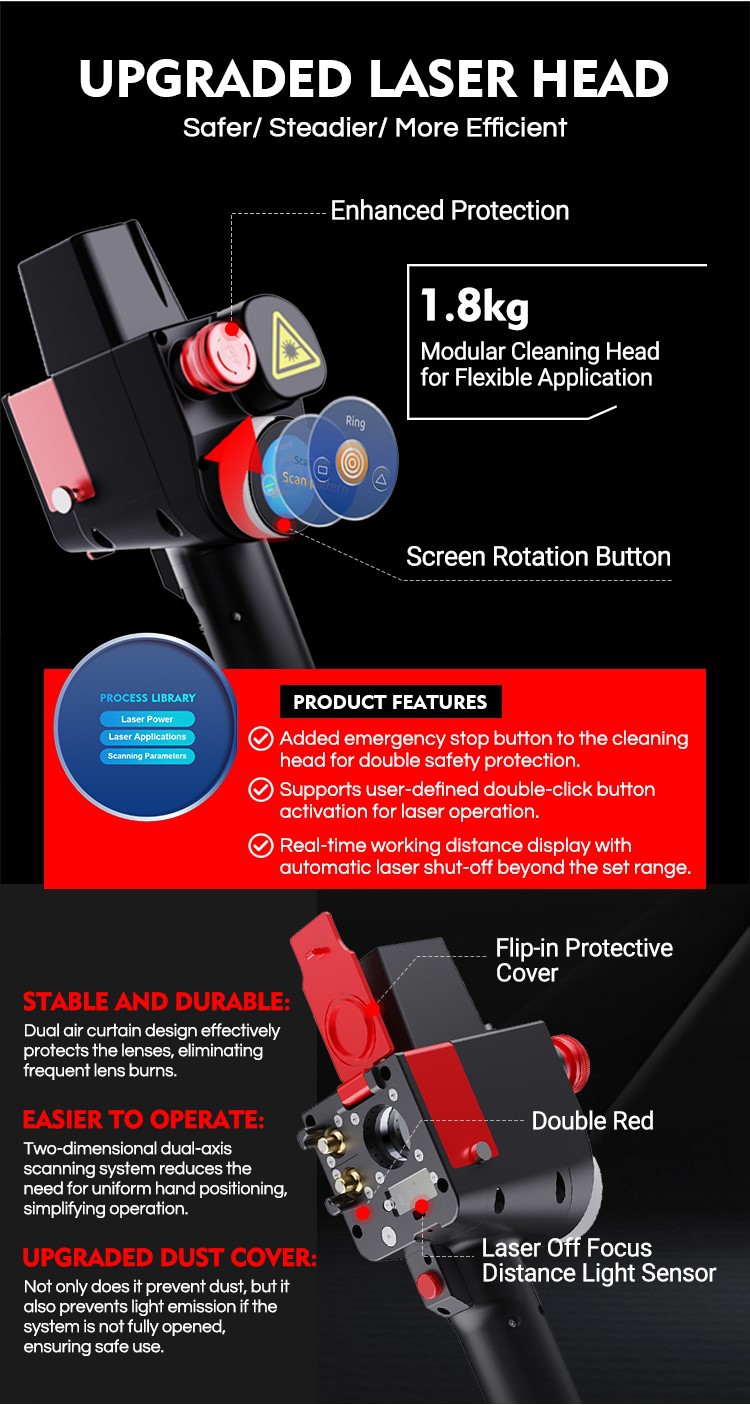

2. Weighing just 65kg with a 1.8kg handheld head, the equipment features universal wheels for effortless mobility. It requires no complicated installation, allowing for rapid operation site switching and effectively cutting down on-site operational workload.
3. Featuring a 5mm–500mm adjustable laser line width (compatible with various field lenses) and 12 built-in scanning patterns, it enables selective area cleaning and micron-level precision control. This design ensures seamless adaptation to complex workpieces and diverse contamination types.

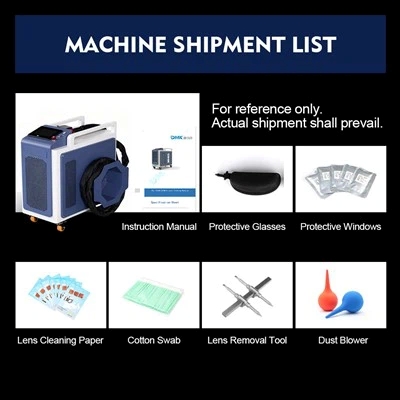

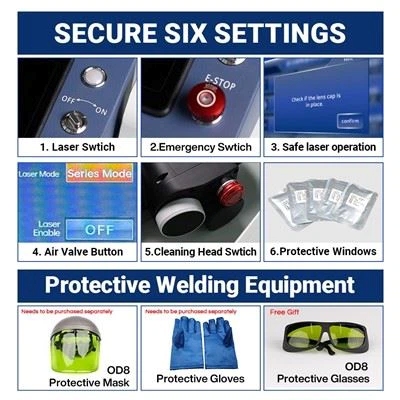

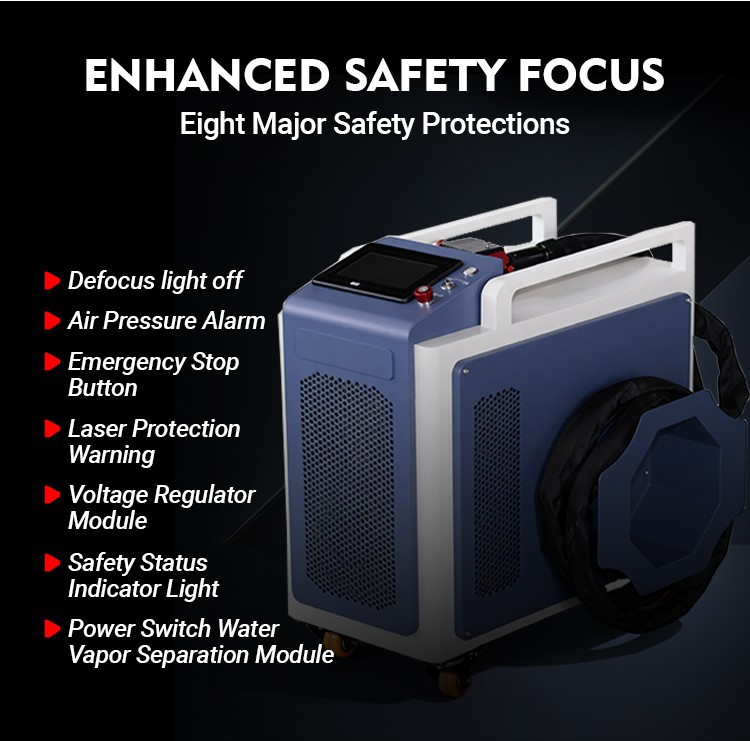

4. Adopting an air-cooled cooling system with a simplified structure and hassle-free maintenance, it supports long-term continuous operation. As a Class IV laser product, it comes with EU-certified protective glasses, dual emergency stop buttons, and an interlock device, delivering multi-layered safety safeguards.

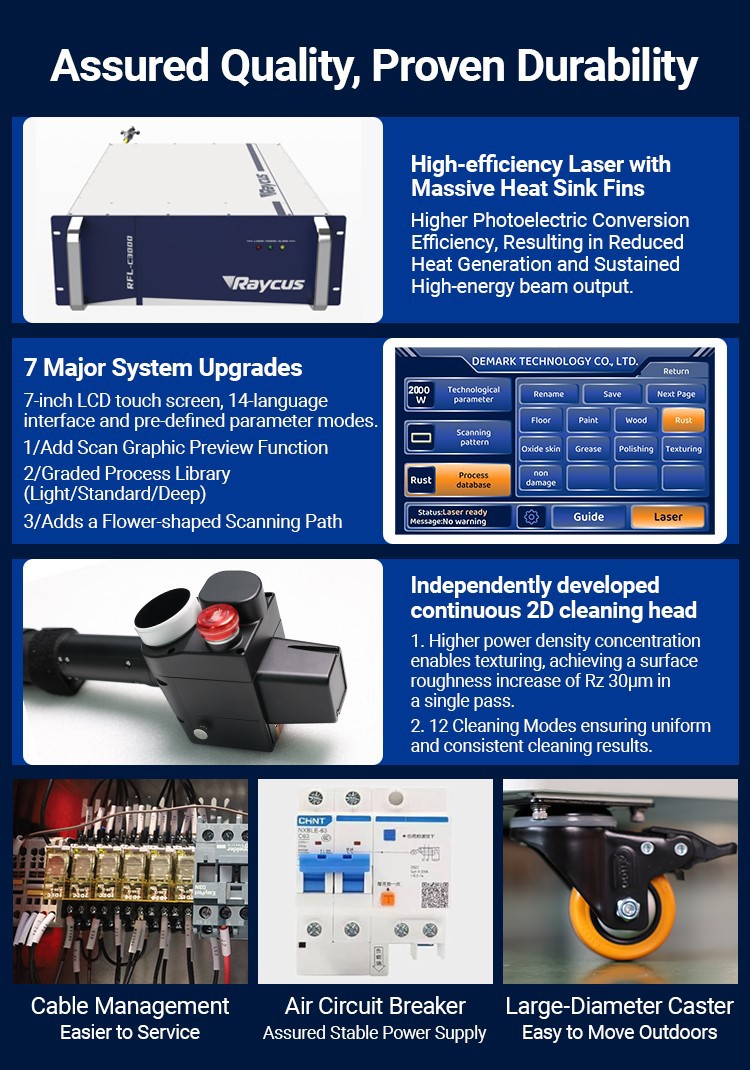

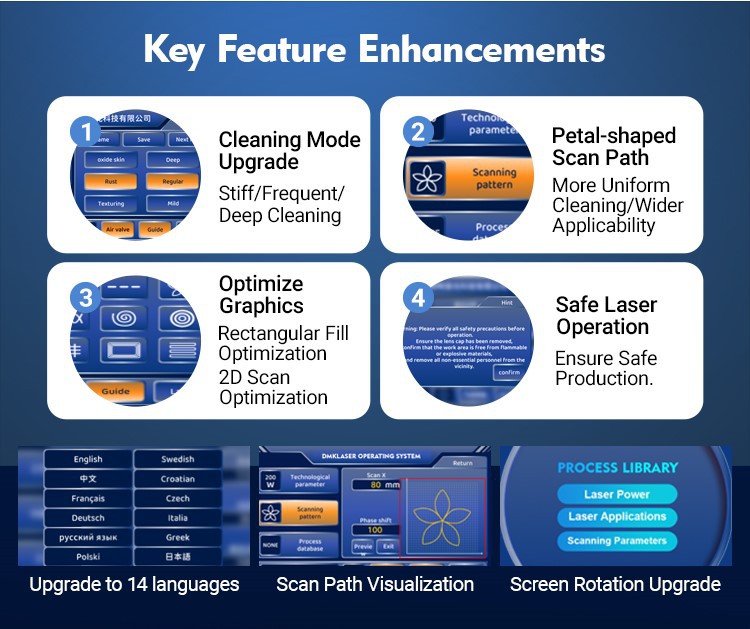

5. Equipped with a 7-inch touchscreen, it supports password unlocking and process library storage/retrieval. Red light guidance facilitates accurate focusing, while parameter adjustments are intuitive and straightforward. External control and communication compatibility further streamlines integrated management.

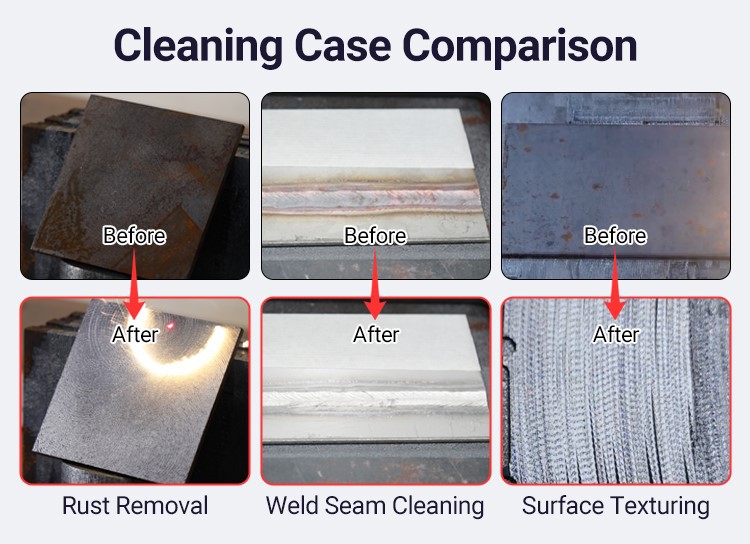

1. Rust and paint stripping for large metal components
2. Welding black ash and oil stain removal for rail transportation equipment
3. Refurbishment and pre-treatment of automotive manufacturing and sheet metal parts
4. Surface maintenance and decontamination of ships and vessels
5. Deep cleaning of molds in the mold processing sector
6. Carbon deposit and oxide film elimination for welded component surfaces

FAQ

Why does the equipment adopt an air-cooled design? What are the advantages?

Answer: The air-cooled design eliminates the need for additional water cooling equipment, featuring a simpler structure, more convenient movement and lower maintenance costs. At the same time, it can meet the heat dissipation needs of high-power equipment, ensuring long-term continuous and stable operation, suitable for on-site operations without water sources.

How to choose between 1500W and 2000W power options?

Answer: 1500W is suitable for regular thickness contaminants (such as thin rust, paint) and medium-area cleaning; 2000W is adapted to thick rust, stubborn oil stains or large-area high-efficiency cleaning scenarios. It can be flexibly selected according to cleaning needs and efficiency requirements.

What precautions should be taken during operation?

Answer: Wear the supporting laser protective glasses throughout the operation and do not look directly at the laser output head. Flammable and explosive items are not allowed around the equipment. Maintain a ventilation distance of more than 10cm, and the bending radius of the optical fiber should not be less than 200mm.
